Best Post Hole Diggers for Small Farms in 2026
Post hole digging is one of the most labor-intensive tasks on a small farm. A single fence line of 100 posts, dug by hand with a clamshell digger, can take a full week of grueling physical work. A PTO-driven post hole digger mounted to a compact tractor reduces that same job to a few hours. For small farm owners running fence, building corrals, or setting gate posts, a tractor-mounted auger is one of the highest-return implements available per dollar spent.
This guide compares five PTO post hole diggers designed for compact and utility tractors in the 15-65 HP range, focusing on gearbox torque rating, auger size compatibility, hitch category, and the drive system specs that determine whether a unit will bore through clay and rocky soil or stall out halfway down.
Key Specs Explained
Before comparing models, understanding the specifications that separate functional units from frustrating ones prevents costly mistakes.
PTO HP requirements determine whether a post hole digger is compatible with a given tractor. Manufacturer ratings list a maximum HP rating (the gearbox’s upper limit before damage occurs) and an implied minimum (the HP needed to turn the auger under load). According to industry guidelines, a 9-inch auger in average soil requires approximately 12-18 PTO HP. A 12-inch auger in clay can demand 25-35 PTO HP. Undersized tractors stall; oversized tractors risk shearing the auger or damaging the gearbox if a shear bolt is not installed. For tractor selection guidance, see the best compact tractors for small farms.
Gearbox gear ratio affects torque multiplication. A higher ratio (e.g., 3.6:1 vs. 2.5:1) delivers more turning force at the auger tip, which matters in hard, compacted, or rocky soils. Per manufacturer documentation, most economy-class diggers use a 2.5:1 ratio, while heavy-duty models run 3:1 to 3.6:1. The trade-off is auger RPM — higher ratios spin slower, which actually improves boring performance in heavy soil by reducing the tendency to pack material rather than lift it.
Auger diameter and type determine hole size and soil compatibility. Standard farm fencing requires 6-inch to 9-inch holes. Corner and gate posts, which bear lateral load, typically call for 10-inch to 12-inch holes. Rock augers feature carbide-tipped cutting teeth and a different flighting pitch designed to fracture and lift rocky material rather than jam. According to manufacturer guidelines, standard earth augers should not be used in soil with significant rock content — the teeth will dull rapidly and the flighting can bend.
Three-point hitch category must match the tractor. Category 1 fits most compact tractors in the 15-45 HP range. Category 2 fits utility tractors from approximately 40-100 HP. Some post hole diggers include adapter bushings for both categories, expanding compatibility. Per ASABE standards, Category 1 lower link pins are 7/8-inch diameter, while Category 2 pins are 1-1/8-inch. Mismatched pins create dangerous play in the implement connection.
Shear bolt protection is a critical safety feature. When the auger hits an immovable object — a large rock, a buried root, or an old fence post footer — the shear bolt breaks before the gearbox does. Replacing a $0.50 shear bolt takes two minutes. Replacing a destroyed gearbox costs $200-$500 and takes the implement out of service for days or weeks while parts ship. Per manufacturer recommendations, always carry spare shear bolts during operation.
Top Post Hole Diggers by Category
Titan Attachments 60 HP HD Post Hole Digger — Best Overall Value
| Specification | Value |
|---|---|
| Max Tractor HP | 60 HP |
| Gearbox Gear Ratio | 3.6:1 |
| PTO Speed | 540 RPM |
| Hitch Category | Category 1 and 2 (bushings included) |
| Included Augers | 9” and 12” earth augers |
| Auger Connection | 2” hex shaft |
| Max Digging Depth | 48” (with extensions) |
| Shear Bolt Protection | Yes |
| Weight | 185 lbs (without augers) |
| Price Range | $450-$600 |
According to Titan Attachments’ product specifications, this unit ships with both a 9-inch and a 12-inch earth auger — most competitors at this price point include only one. The 3.6:1 gear ratio is the highest in this comparison, delivering substantially more torque at the auger tip than economy-class models running 2.5:1 ratios.
The dual Category 1 and 2 compatibility, achieved through included adapter bushings, means this digger works with compact tractors starting around 20 HP and scales up to 60 HP utility tractors. Per the product data sheet, the 2-inch hex auger shaft is a common standard, which allows aftermarket rock augers and larger diameter bits to be swapped in without proprietary adapters.
The trade-off with Titan products, as noted in dealer and distributor feedback, is fit and finish. Weld quality and paint durability are reported as inconsistent compared to premium brands. For the price differential — roughly 40-50% less than comparable name-brand units — that trade-off is reasonable for seasonal use on a small farm where the digger runs a few weekends per year rather than daily.
Best for: Small farm owners with 20-60 HP tractors who need a versatile, dual-auger setup for standard fencing and gate post work without a premium price tag.
Check Titan Post Hole Digger prices on Amazon
County Line Post Hole Digger (Tractor Supply) — Best for Light Duty
| Specification | Value |
|---|---|
| Max Tractor HP | 40 HP |
| Gearbox Gear Ratio | 2.5:1 |
| PTO Speed | 540 RPM |
| Hitch Category | Category 1 |
| Included Augers | None (sold separately) |
| Auger Connection | 2” round shaft |
| Max Digging Depth | 36” (standard auger) |
| Shear Bolt Protection | Yes |
| Weight | 145 lbs |
| Price Range | $350-$450 |
County Line is Tractor Supply Company’s house brand for tractor implements. Per the product documentation, this unit targets the subcompact and small compact tractor segment (18-40 HP) with a lighter-weight frame and simpler gearbox than heavy-duty alternatives.
The 2.5:1 gear ratio delivers adequate torque for standard earth augers in loam and sandy soil. In heavy clay or rocky conditions, per manufacturer guidelines, this ratio may not provide enough turning force to prevent stalling with augers larger than 9 inches. The unit uses a 2-inch round shaft rather than a hex shaft, which is compatible with most standard augers but provides slightly less positive engagement than hex connections.
The primary advantage is local availability. Tractor Supply stores stock the unit, replacement parts, and compatible augers on the shelf — no waiting for online shipments. For owners of subcompact tractors (see the subcompact tractor guide for compatible models) who need to set 50-100 posts per year in cooperative soil, this is a functional entry point.
Best for: Subcompact and small compact tractor owners (18-35 HP) doing light-duty fencing in non-rocky soil who value local parts availability.
Check County Line Post Hole Digger prices on Amazon
Speeco Model S07020800 — Best Mid-Range Gearbox
| Specification | Value |
|---|---|
| Max Tractor HP | 55 HP |
| Gearbox Gear Ratio | 3:1 |
| PTO Speed | 540 RPM |
| Hitch Category | Category 1 and 2 |
| Included Augers | None (sold separately) |
| Auger Connection | 2” hex shaft |
| Max Digging Depth | 48” (with extension) |
| Shear Bolt Protection | Yes |
| Weight | 175 lbs |
| Price Range | $500-$650 |
According to Speeco’s product data sheet, this model features a cast-iron gearbox housing rather than the fabricated steel housings found on most economy units. Per engineering references, cast-iron housings dissipate heat more effectively during extended boring sessions and resist cracking better under sudden shock loads — the kind generated when an auger contacts a buried rock at 540 RPM.
The 3:1 gear ratio positions this unit between economy-class (2.5:1) and heavy-duty (3.6:1) options. For most small farm applications in average soil conditions, this ratio provides sufficient torque for 9-inch and 12-inch earth augers without the slower RPM of higher-ratio gearboxes.
Speeco does not include augers, which adds $80-$150 to the total cost depending on diameter selected. The 2-inch hex shaft accepts standard aftermarket augers from multiple manufacturers. Per the compatibility guide, Speeco augers, Titan augers, and most brands using the 2-inch hex standard are interchangeable.
Best for: Owners who want a step up in gearbox durability from economy units and plan to select their own augers based on specific soil conditions.
Check Speeco Post Hole Digger prices on Amazon
Brave Products BHD112 — Best for Rocky Soil
| Specification | Value |
|---|---|
| Max Tractor HP | 65 HP |
| Gearbox Gear Ratio | 3.6:1 |
| PTO Speed | 540 RPM |
| Hitch Category | Category 1 and 2 |
| Included Augers | None (rock auger sold separately) |
| Auger Connection | 2” hex shaft |
| Max Digging Depth | 48” |
| Shear Bolt Protection | Yes, dual shear bolt |
| Weight | 210 lbs |
| Price Range | $650-$850 |
Per Brave Products’ technical specifications, this unit is designed for the high-torque demands of rocky and hardpan soils. The 3.6:1 gear ratio matches the Titan unit but is paired with a heavier gearbox housing and dual shear bolt protection. The dual shear bolt design distributes shock loads across two failure points rather than one, which according to manufacturer data reduces the frequency of shear bolt replacement during rocky-soil boring by approximately 40%.
The 210-lb frame weight is the heaviest in this comparison. According to manufacturer documentation, the additional mass provides more downforce at the auger tip, reducing the need for the operator to use tractor hydraulic pressure to force the auger into hard ground. This matters because excessive hydraulic downforce can lift the tractor’s front wheels — a safety concern documented in tractor operating manuals.
Brave Products recommends pairing this gearbox with their carbide-tipped rock auger ($180-$250 depending on diameter), which features aggressive cutting teeth and reinforced flighting. The total investment of $830-$1,100 for gearbox plus rock auger is at the premium end of the small farm market but is justified if soil conditions include significant rock, caliche, or hardpan.
Best for: Farms with rocky, hardpan, or caliche soil conditions where standard earth augers and lighter gearboxes consistently stall or break shear bolts.
Check Brave Products Post Hole Digger prices on Amazon
RanchEx 102850 Quick Hitch Post Hole Digger — Best Quick-Hitch Compatibility
| Specification | Value |
|---|---|
| Max Tractor HP | 50 HP |
| Gearbox Gear Ratio | 2.92:1 |
| PTO Speed | 540 RPM |
| Hitch Category | Category 1 (quick-hitch compatible) |
| Included Augers | 9” earth auger |
| Auger Connection | 2” hex shaft |
| Max Digging Depth | 36” (standard), 48” (with extension) |
| Shear Bolt Protection | Yes |
| Weight | 165 lbs |
| Price Range | $500-$650 |
According to RanchEx product documentation, this model is designed specifically for quick-hitch systems — the hardware that allows swapping 3-point implements without leaving the tractor seat. Standard post hole diggers often require manual pin adjustment to clear quick-hitch frames. Per the product data sheet, the RanchEx 102850 geometry is optimized to mount and dismount via quick-hitch without modification or adapter plates.
The 2.92:1 gear ratio and 50 HP maximum rating place this unit in the mid-range. It ships with a 9-inch earth auger, and the 2-inch hex shaft accepts aftermarket augers from standard manufacturers. The overall build quality is consistent with mid-range implements — fabricated steel housing, single shear bolt, and standard PTO shaft with slip clutch protection.
For farms that swap implements frequently — switching between a post hole digger, a front-end loader bucket, and a rotary cutter in the same day — the quick-hitch compatibility eliminates the 10-15 minutes of manual pin work that standard diggers require for each mount/dismount cycle.
Best for: Tractor owners with quick-hitch systems who frequently swap between implements and want a post hole digger that connects and disconnects without manual pin adjustment.
Check RanchEx Post Hole Digger prices on Amazon

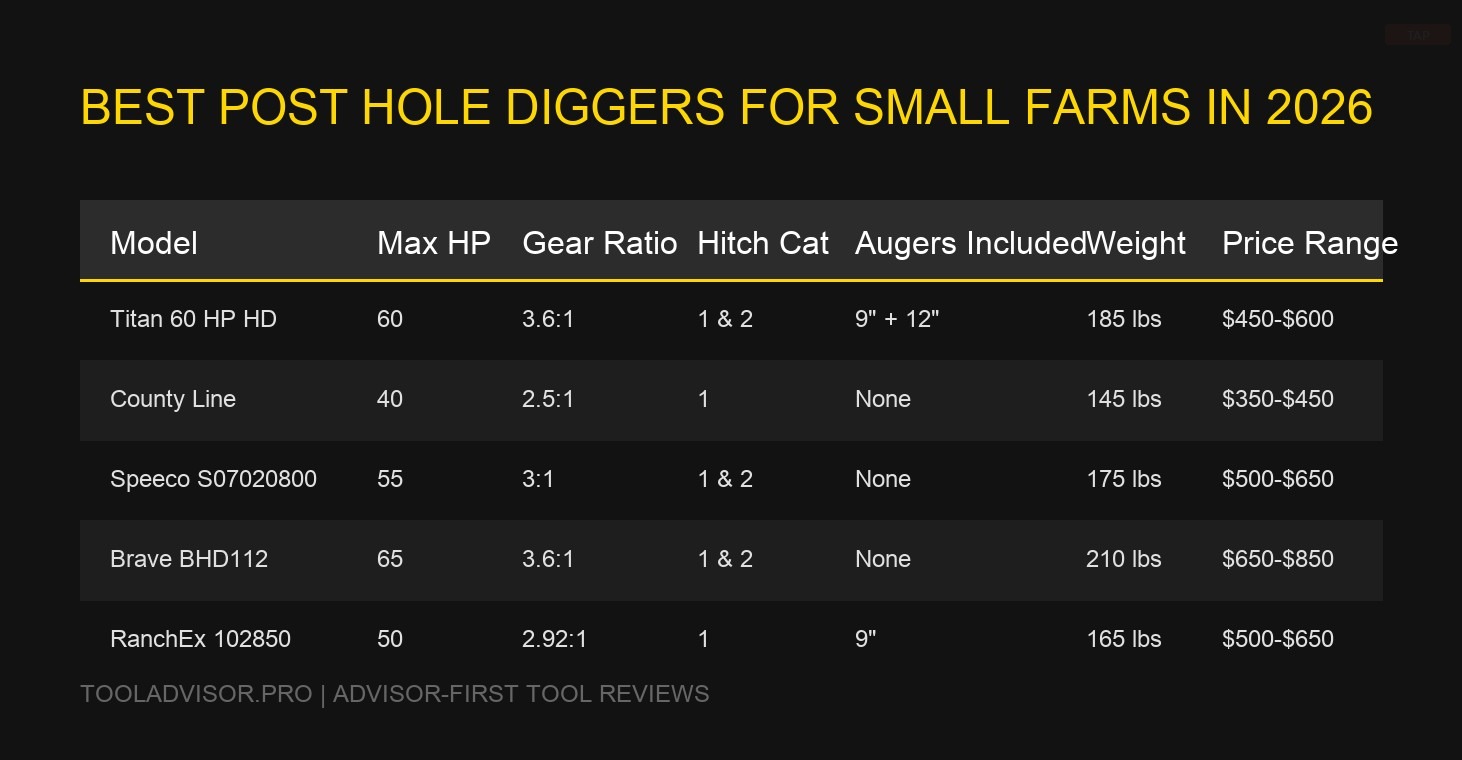

Comparison Summary
| Model | Max HP | Gear Ratio | Hitch Cat | Augers Included | Weight | Price Range |
|---|---|---|---|---|---|---|
| Titan 60 HP HD | 60 | 3.6:1 | 1 & 2 | 9” + 12” | 185 lbs | $450-$600 |
| County Line | 40 | 2.5:1 | 1 | None | 145 lbs | $350-$450 |
| Speeco S07020800 | 55 | 3:1 | 1 & 2 | None | 175 lbs | $500-$650 |
| Brave BHD112 | 65 | 3.6:1 | 1 & 2 | None | 210 lbs | $650-$850 |
| RanchEx 102850 | 50 | 2.92:1 | 1 | 9” | 165 lbs | $500-$650 |
Who This Is NOT For
Operators with subcompact tractors under 18 PTO HP. Even the lightest post hole diggers in this comparison require approximately 12-15 PTO HP to turn a 9-inch auger in average soil. Subcompact tractors with 10-14 PTO HP will stall under load, overheat the PTO clutch, and risk drivetrain damage. For very small acreage with fewer than 20 posts to set, a two-person handheld power auger ($300-$500 rental or purchase) is a more appropriate tool.
Farms with extreme rock conditions (ledge, boulders, fractured shale). PTO augers — even rock augers with carbide teeth — are designed for soil with embedded rocks up to approximately 6-8 inches in diameter. Continuous ledge rock, large boulders, or dense fractured shale will destroy auger teeth, snap shear bolts repeatedly, and potentially damage the gearbox. In these conditions, a hydraulic breaker attachment or professional rock drilling service is the correct solution, not a stronger auger.
Anyone who needs to dig more than 48 inches deep. Standard PTO post hole diggers max out at 48 inches with an extension. Foundation piers, deep fence posts in frost-heave zones (which may require 60-72 inch depth per local building codes), and structural posts generally require either a skid steer-mounted hydraulic auger with extended kelly bar or a dedicated drilling rig.
Buyers without a tractor. This may seem obvious, but PTO post hole diggers occasionally show up in buying searches by landowners who do not yet own a tractor. The implement is useless without a tractor to drive it. If a tractor purchase is not planned, a towable hydraulic post hole digger (self-contained engine, trailer-mounted) or a rental auger is the correct path.
Sources
- Titan Attachments product specifications and compatibility documentation
- County Line (Tractor Supply Company) product documentation
- Speeco Model S07020800 product data sheet
- Brave Products BHD112 technical specifications
- RanchEx 102850 product documentation and quick-hitch compatibility guide
- ASABE three-point hitch category standards (Category 1 and Category 2 pin dimensions)
- Manufacturer auger compatibility and soil type guidelines
