Best CNC Plasma Tables for Small Shops in 2026
A CNC plasma table automates what a handheld plasma cutter does manually — cutting metal along programmed toolpaths with repeatable accuracy. For small fabrication shops, sign makers, and custom metalwork businesses, a CNC plasma table can transform a single-person operation into a production-capable shop. According to industry data, CNC plasma tables offer cutting speeds 3-5x faster than manual cutting with significantly better edge quality and repeatability.
The market ranges from $3,000 hobby-grade kits to $60,000+ industrial units. This guide focuses on tables suited for small shops — typically 2’x2’ to 5’x10’ cut areas, compatible with standard plasma power supplies, and priced under $20,000 for the table itself.
Key Specifications That Matter
Before comparing tables, understand what separates a productive CNC plasma table from a frustrating one:
- Cut area: Determines your maximum part size. 4’x4’ is the minimum for most fabrication work; 4’x8’ handles full sheet steel
- Motion system: Ball screws offer precision; rack and pinion provides speed over longer distances. Most tables over 4’ use rack and pinion
- Controller: The software/hardware that interprets G-code and drives the motors. THC (Torch Height Control) integration is critical for cut quality
- Frame rigidity: A flex-prone frame produces wavy cuts. Look for welded steel tube construction with proper gusseting
- Water table vs. downdraft: Water tables reduce warping and smoke; downdraft tables provide better visibility and easier cleanup
Top CNC Plasma Tables by Category
Langmuir Systems CrossFire XR — Best for Small Shop Entry
| Specification | Value |
|---|---|
| Cut Area | 2’ x 2’ (expandable to 2’ x 4’) |
| Motion System | Ball screw driven |
| Motors | NEMA 23 stepper motors |
| Controller | Langmuir FireControl |
| THC | Included (integrated) |
| Table Type | Water table (included) |
| Frame | Welded steel tube |
| Positional Accuracy | ±0.005” per manufacturer specs |
| Price Range | $4,200-$5,500 (with water table) |
According to Langmuir’s specifications, the CrossFire XR uses enclosed ball screws on all axes with magnetic debris shields. The included FireControl software handles CAM, G-code generation, and machine control in a single interface. The 2’x2’ base model expands to 2’x4’ with an extension kit.
Best for: Hobbyists, artists, and small shops processing parts under 2’x4’. The integrated software eliminates the need for separate CAM purchases.
Langmuir Systems CrossFire PRO — Best Overall Value
| Specification | Value |
|---|---|
| Cut Area | 2’ x 2’ / 2’ x 4’ / 4’ x 4’ (expandable to 4’ x 8’) |
| Motion System | Ball screw (2’x2’/2’x4’) or rack and pinion (4’x4’+) |
| Motors | NEMA 23 stepper motors |
| Controller | Langmuir FireControl |
| THC | Included (integrated) |
| Table Type | Water table (included) |
| Frame | Welded steel tube |
| Positional Accuracy | ±0.005” per manufacturer specs |
| Price Range | $5,900-$10,500 (varies by size) |
The PRO line offers the same motion and control system as the XR in larger cut areas. Per Langmuir’s documentation, the 4’x8’ configuration uses rack and pinion drives for the longer X-axis while maintaining ball screws on the Y-axis. The water table is segmented for easier draining and cleaning.
Best for: Small fabrication shops and sign makers processing full-sheet material. The 4’x8’ cut area handles standard sheet sizes without cutting stock down first.
Arclight Dynamics FullSheet — Best for Production Fabrication
| Specification | Value |
|---|---|
| Cut Area | 4’ x 8’ / 5’ x 10’ |
| Motion System | Helical rack and pinion |
| Motors | Servo motors |
| Controller | Mach4 compatible |
| THC | Proma SD (or compatible) |
| Table Type | Water table (heavy duty) |
| Frame | Heavy wall steel tube, gusseted |
| Positional Accuracy | ±0.003” per manufacturer specs |
| Price Range | $12,000-$18,000 (table only, no plasma source) |
Arclight Dynamics builds heavier-duty tables designed for daily production use. According to their specifications, the helical rack and pinion system with servo motors provides faster traverse speeds and more precise positioning than stepper-driven alternatives. The frame uses heavier wall tubing with diagonal gusseting to maintain rigidity during high-speed cutting.
Best for: Job shops running 4+ hours of cutting daily. The servo motors and heavier construction handle sustained production better than stepper-driven tables.
Lincoln Electric Torchmate 4400/4800 — Best Brand Support
| Specification | Value |
|---|---|
| Cut Area | 4’ x 4’ / 4’ x 8’ |
| Motion System | Rack and pinion |
| Motors | Stepper motors |
| Controller | Torchmate CAD/CAM |
| THC | Included |
| Table Type | Water or downdraft options |
| Frame | Welded steel tube |
| Warranty | 1 year |
| Price Range | $8,000-$15,000 (table only) |
Lincoln Electric’s Torchmate line is backed by Lincoln’s dealer and service network. Per Lincoln’s product data, the included Torchmate CAD/CAM software handles design through cutting in a single workflow. Lincoln also offers bundled packages with their own plasma power supplies for simplified purchasing and support.
Best for: Shops that value manufacturer support and prefer a single vendor for table and plasma source.

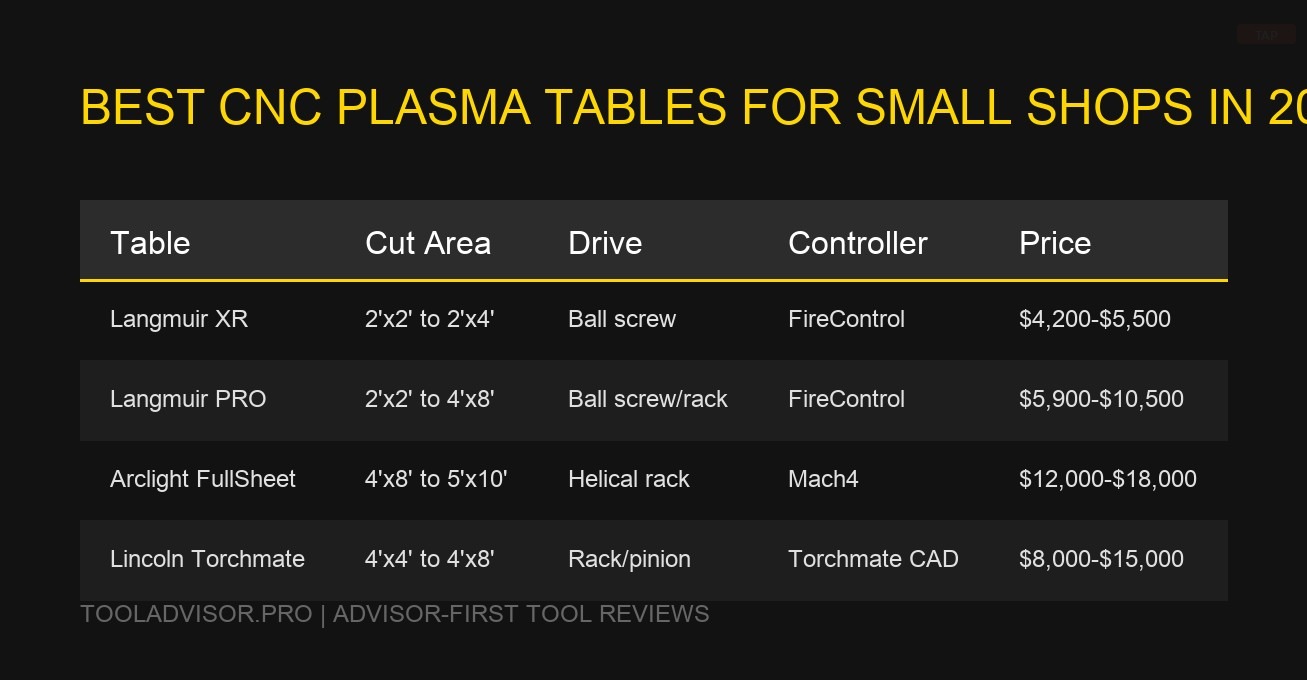

Comparison Summary
| Table | Cut Area | Drive | Controller | Price |
|---|---|---|---|---|
| Langmuir XR | 2’x2’ to 2’x4’ | Ball screw | FireControl | $4,200-$5,500 |
| Langmuir PRO | 2’x2’ to 4’x8’ | Ball screw/rack | FireControl | $5,900-$10,500 |
| Arclight FullSheet | 4’x8’ to 5’x10’ | Helical rack | Mach4 | $12,000-$18,000 |
| Lincoln Torchmate | 4’x4’ to 4’x8’ | Rack/pinion | Torchmate CAD | $8,000-$15,000 |
The Plasma Source Question
CNC plasma tables are often sold separately from the plasma power supply. The table is the motion system; you also need a mechanized plasma cutter. Not every handheld plasma cutter works well on a CNC table. (For handheld options and specs, see our plasma cutter buying guide.)
According to Hypertherm and other manufacturers, key requirements for CNC-compatible plasma sources include:
- Machine torch compatibility: Hand torches cause inconsistent cut quality on CNC systems
- Pilot arc: Non-contact arc starting prevents consumable damage during pierce
- CNC interface port: Allows the table controller to start/stop the arc automatically
- Sufficient duty cycle: CNC cutting runs longer continuous cycles than handheld cutting
Popular CNC-compatible plasma sources include the Hypertherm Powermax45 XP ($1,800-$2,200 — check price on Amazon), Thermal Dynamics Cutmaster 60i ($1,400-$1,700 — check price on Amazon), and Razorweld 45 ($800-$1,000 — check price on Amazon). Total system cost (table + plasma source) typically ranges from $5,000 for entry-level to $20,000+ for production-grade setups.
Who This Is NOT For
- Shops cutting primarily stainless steel or aluminum. Plasma cut quality degrades on these materials compared to mild steel. For production stainless/aluminum cutting, laser or waterjet is superior despite higher cost
- Precision work requiring tolerances tighter than ±0.020”. CNC plasma is a near-net-shape process. Parts typically require secondary machining for tight-tolerance features
- Shops without adequate electrical infrastructure. A CNC plasma table with a 60A plasma source may draw 50+ amps at 240V. Combined with the compressor requirement (typically 5-7 CFM at 90 PSI), electrical capacity can be a limiting factor
- Occasional users cutting fewer than 10 parts per month. The setup time, consumable costs, and learning curve favor outsourcing small quantities to a local metal service center
Total Cost of Ownership
Beyond the table and plasma source, budget for:
- Compressed air: 5+ CFM at 90 PSI minimum. A dedicated compressor ($500-$1,500) is typical
- Consumables: Electrodes, nozzles, and shields. Budget $100-$300/month for active use
- Software: Some tables include CAM software; others require separate purchases ($200-$2,000)
- Ventilation: Plasma cutting produces significant fumes. A downdraft table or fume extraction system ($500-$3,000) is essential for enclosed shops
- Maintenance: Slat replacement, water treatment, and drive system lubrication are ongoing costs
Sources
- Langmuir Systems CrossFire XR and PRO specifications (langmuirsystems.com)
- Arclight Dynamics FullSheet product documentation (arclightdynamics.com)
- Lincoln Electric Torchmate 4400/4800 specifications (torchmate.com)
- Hypertherm CNC cutting application notes
- Thermal Dynamics Cutmaster series specifications
- AWS D1.1 Structural Welding Code — cut quality standards reference
