Best Plasma Cutters Under $1000 in 2026
Published: January 5, 2026
Plasma cutting uses an electrically conductive gas to transfer energy from a power source through a torch to the workpiece, cutting through steel, aluminum, and other conductive metals with precision. According to the American Welding Society, plasma cutting offers faster cutting speeds and cleaner cuts than oxy-fuel for materials under 1” thick.
This guide evaluates plasma cutters under $1000 based on manufacturer specifications, focusing on cutting capacity, duty cycle, and overall value for hobbyists and light fabrication work.
Understanding Plasma Cutter Specifications
Key specs to compare:
- Clean cut capacity: Maximum thickness for quality cuts
- Severance capacity: Maximum thickness the machine can cut (rough edge)

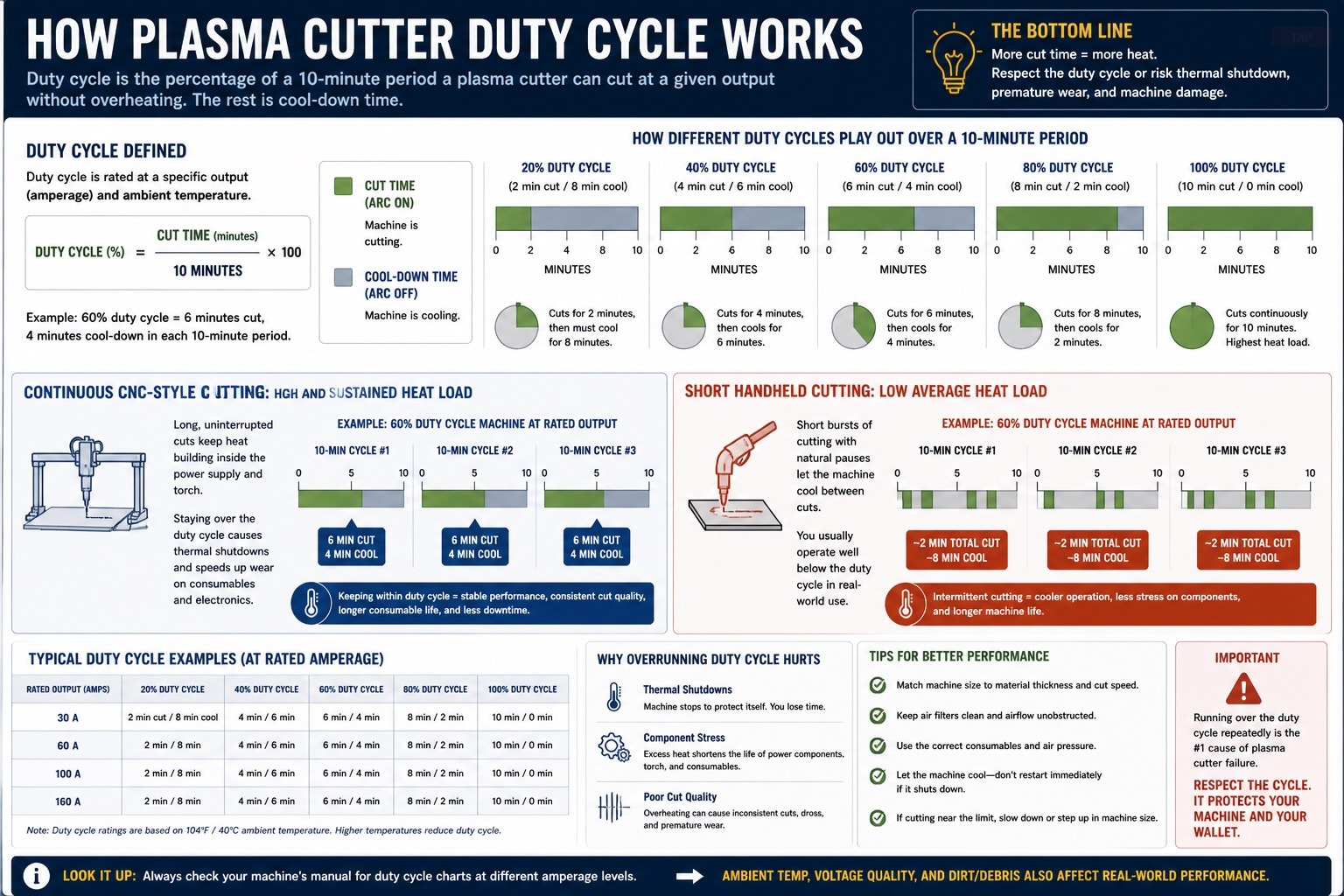

- Duty cycle: Percentage of 10 minutes the unit can run at rated output
- Amperage range: Lower amps for thin material, higher for thick
- Air requirements: CFM and PSI needed (built-in vs external compressor)
Top Plasma Cutters Under $1000
Hypertherm Powermax30 XP - Best Cut Quality
| Specification | Value |
|---|---|
| Clean Cut Capacity | 3/8” steel |
| Severance Capacity | 5/8” steel |
| Amperage Output | 15-30A |
| Duty Cycle | 50% at 30A |
| Air Requirements | 4.0 CFM at 90 PSI |
| Weight | 21 lbs |
| Warranty | 3 years |
| Price Range | $900-1000 |
According to Hypertherm’s specifications, the Powermax30 XP delivers a cut quality that outperforms many 50A units on thinner materials. Their proprietary torch technology includes SmartSense™ that automatically adjusts gas pressure. Consumable costs are higher than competitors but last longer per Hypertherm’s testing data.
Best for: Users prioritizing cut quality and willing to pay premium consumable costs.
Miller Spectrum 375 X-TREME - Best Portability
| Specification | Value |
|---|---|
| Clean Cut Capacity | 3/8” steel |
| Severance Capacity | 1/2” steel |
| Amperage Output | 10-30A |
| Duty Cycle | 40% at 30A |
| Air Requirements | 4.5 CFM at 90 PSI |
| Weight | 22 lbs |
| Warranty | 3 years |
| Price Range | $850-950 |
Miller’s Spectrum 375 features their Auto-Refire™ technology, which per Miller’s documentation, automatically restarts the pilot arc when cutting expanded metal or grating. The unit accepts 120V or 240V input with automatic voltage detection.
Best for: Mobile fabricators and job site work requiring portability.
Everlast PowerPlasma 60S - Best Cutting Capacity
| Specification | Value |
|---|---|
| Clean Cut Capacity | 3/4” steel |
| Severance Capacity | 1” steel |
| Amperage Output | 20-60A |
| Duty Cycle | 60% at 60A |
| Air Requirements | 5.5 CFM at 70 PSI |
| Weight | 45 lbs |
| Warranty | 5 years |
| Price Range | $700-800 |
The Everlast 60S delivers specifications that compete with units twice its price. Per Everlast’s data, the non-HF (high frequency) pilot arc is safe for use near electronics and CNC tables. The included machine torch (vs hand torch) provides CNC compatibility out of the box.
Best for: Shops needing thicker cutting capacity and CNC compatibility at a budget price.
YesWelder CUT-55DS - Best Budget Option
| Specification | Value |
|---|---|
| Clean Cut Capacity | 1/2” steel |
| Severance Capacity | 3/4” steel |
| Amperage Output | 10-55A |
| Duty Cycle | 60% at 55A |
| Air Requirements | 4.5 CFM at 65 PSI |
| Weight | 26 lbs |
| Warranty | 2 years |
| Price Range | $350-450 |
YesWelder’s CUT-55DS offers entry-level pricing with mid-range specifications. According to YesWelder’s documentation, it features non-HF arc start and a 2T/4T trigger mode. Consumables use a common design compatible with third-party replacements.
Best for: Beginners and hobbyists on a strict budget.
Comparison Table
| Model | Clean Cut | Severance | Duty Cycle | Price |
|---|---|---|---|---|
| Hypertherm Powermax30 XP | 3/8” | 5/8” | 50%@30A | $900-1000 |
| Miller Spectrum 375 | 3/8” | 1/2” | 40%@30A | $850-950 |
| Everlast PowerPlasma 60S | 3/4” | 1” | 60%@60A | $700-800 |
| YesWelder CUT-55DS | 1/2” | 3/4” | 60%@55A | $350-450 |
Air Supply Requirements
All plasma cutters require clean, dry compressed air. According to manufacturer specifications:
| Unit | CFM Required | PSI Required | Built-in Compressor |
|---|---|---|---|
| Hypertherm 30 XP | 4.0 | 90 | No |
| Miller 375 | 4.5 | 90 | No |
| Everlast 60S | 5.5 | 70 | No |
| YesWelder 55DS | 4.5 | 65 | No |
Tip: A 20+ gallon compressor with 5+ CFM at 90 PSI is recommended for continuous cutting. Moisture separators and air dryers significantly extend consumable life per manufacturer recommendations.
Consumable Costs (Estimated)
Long-term operating costs depend heavily on consumables:
| Brand | Electrode Cost | Nozzle Cost | Typical Life |
|---|---|---|---|
| Hypertherm | $8-12 | $6-10 | 2-3 hours cutting |
| Miller | $6-10 | $5-8 | 1.5-2 hours |
| Everlast | $3-5 | $2-4 | 1-1.5 hours |
| YesWelder | $2-3 | $1-2 | 1 hour |
Consumable life varies significantly based on amperage, material type, and cutting technique.
How We Evaluate
This guide is based on manufacturer-published specifications and documentation. We do not perform hands-on testing. Actual performance may vary based on air quality, material type, and operator technique. Always verify current specifications and pricing with manufacturers or authorized dealers.
Safety Considerations
According to OSHA and AWS safety guidelines, plasma cutting requires:
- Welding helmet with appropriate shade (typically 5-8 for plasma)
- Leather gloves and long sleeves
- Proper ventilation or fume extraction
- Fire-resistant work surface
- Clear area free of combustibles
Sources
- Manufacturer specifications
- Hypertherm technical documentation
- Miller Electric product data
- Everlast welding specifications
